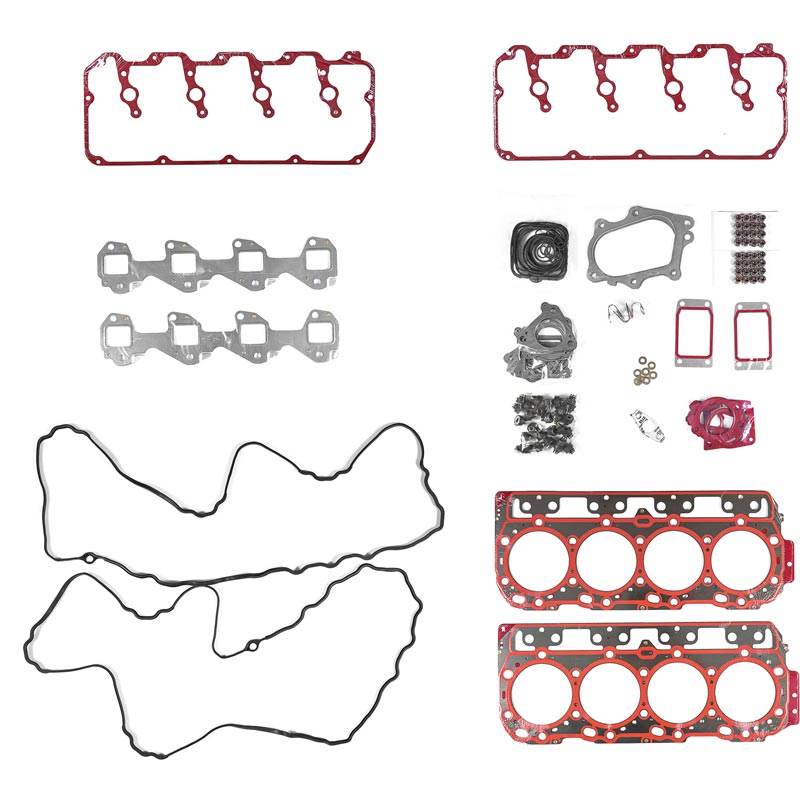

Powerstroke Products LLY/LBZ Head Gasket Set

The Powerstroke Products LLY/LBZ Head Gasket Set will help you reassemble the top end of the engine in your GM 6.6L Duramax LLY/LBZ. Manufactured using quality materials, this gasket set provides you with a factory-like fit and function. The 105mm head gaskets included in this kit have an SS301 material for the outer layers and stainless steel for the center core. Each head gasket has the entire surface coated with PTFE material and is mask-coated with an FKM Fluoroelastomer Coating for a completely coated surface area. This Powerstroke Products Duramax Head Gasket Set comes with Grade C thickness gaskets.

Features

• Direct-Fit Replacements
• Includes Gaskets, Seals, & O-Rings
• Grade C Thickness Head Gasket (1.05 mm)
• FKM Fluoroelastomer & PTFE Coated Head Gaskets

Kit Includes
1-Thermostat Bypass Pipe Seal
1-Coolant Outlet Pipe Seal
1-Cylinder Head LH Gasket ("C" 1.05 mm)
1-Cylinder Head RH Gasket ("C" 1.05 mm)
1-EGR Pipe Gasket
1-EGR Pipe Gasket
1-EGR Tube To EGR Valve Gasket
1-EGR Valve Gasket
1-EGR Valve Gasket
1-HVAC Heater Outlet Pipe Seal
1-Lower Turbo Oil Return Pipe Gasket
1-Oil Filler Tube Gasket
1-PCV Valve Cover Gasket
1-Thermostat Bypass Pipe Seal
1-Turbocharger Coolant Line Gasket
1-Turbocharger Exhaust Elbow Gasket
1-Upper Intake Manifold Gasket
1-Upper Turbo Oil Return Pipe Gasket
1-Water Pump O-Ring
2-Center Intake Manifold Gasket
2-Coolant Thermostat Housing Gasket
2-Coolant Thermostat Seal
2-Exhaust Manifold Gasket
2-Intake Manifold End Seal
2-Intake Manifold Gasket
2-Intake Manifold Seal
2-Lower Valve Cover Gasket
2-Turbocharger Inlet Pipe Gasket
2-Turbocharger Inlet Pipe Gasket
2-Turbocharger Oil Feed Pipe Gasket
2-Upper Valve Cover Gasket
32 Valve Stem Oil Seal
