MAHLE Head Set (Without Head Gasket) HS54580
MAHLE Head Set (Without Head Gasket) HS54580
Regular price
$274.56 USD
Regular price
Sale price
$274.56 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description

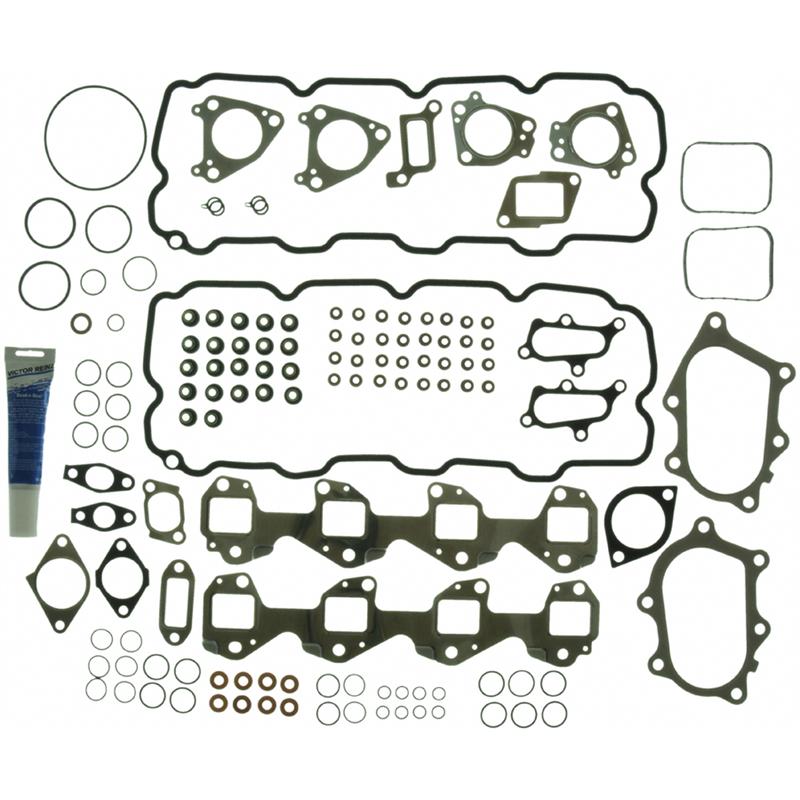

The MAHLE Head Set HS54580 will replace the worn-out gaskets on the top end of your 2001-2004 GM 6.6L Duramax LB7. This gasket kit includes all the O-rings, gaskets, and seals you need for the top and sides of the cylinder head and even includes RTV for gaskets and sealing surfaces that require it.
Features
- Direct-Fit Replacement
- Rubber Intake Manifold Gasket
- Multi-Layered Steel Exhaust Manifold Gasket
Specifications
| Torque to Yield | Yes |
OEM Interchanges
Qty
OEM Qty
OEM Part No.
OEM Name
1
1
97729798
GMC
Competitor Interchanges
Qty
Qty
Comp Part No.
Comp Name
1
1
HSU26269
FEL-PRO INC.
|
Component Breakdown |
|
|
O-Ring: 16 Turbo Inlet Tube: 2 Exhaust Pipe Gasket: 2 Water Outlet Gasket: 2 Int. Manifold Inlet PL: 2 Exhaust Manifold Gasket: 2 Thermostat Housing: 2 Valve Cover Seal: 2 EGR Valve Gasket: 1 Turbo Oil Drain: 1 EGR Valve Gasket: 1 EGR Valve Gasket: 1 Int. Manifold Inlet PL: 2 Turbo Oil Drain: 2 O-Ring: 2 Water By-Pass Line O: 1 Water Pump Seal: 1 |
EGR Valve Gasket: 1 Heater Tube O-Ring: 1 Thermostat By-Pass Co: 1 Water Outlet Gasket: 1 EGR Valve Gasket: 1 Turbocharger Gasket: 1 Drain Plug Gasket: 1 Water Pipe Gasket: 1 Turbocharger Gasket: 1 Turbocharger Gasket: 1 Turbo To Throttle Body: 1 Silicone Sealant: 1 Valve Stem Seal: 16 Valve Cover Grommet: 12 Injection Nozzle O-Ring: 8 Injection Nozzle O-Ring: 8 Copper Washer: 8 |
Manufacturer Warranty*
1 Year Limited
1 Year Limited
Note
Head gasket and cylinder head bolts not included.
