Diesel Site CFIK67 Coolant Filtration System

In addition to sand, there are other things that the filter is removing. SCAs, or supplemental coolant additives used in protecting against cavitation, often flake off the walls. This "precipitate" is a very abrasive particle, like a scale, floating around freely in the system unless caught by a filter. The Dieselsite Coolant Filter Install system will remove the loose particles in your cooling system and give your water pumps, radiators, water necks, and radiator hoses the protection they need from these abrasive materials.  Wear is virtually eliminated by the removal of undesirable elements in your system. The desirable elements, like the actual chemical used in the SCA is not removed.

The cooling system on the Ford 6.7 Super Duty is more complex than in previous years. There are actually two coolant circuits. One circuit cools the auxiliary coolers (low temp system), and one cools the engine and oil cooler (high temp system). The latter is the one we Diesel Site is concerned with. They originally offered a dual filtration system that filtered both systems simultaneously, but found that the secondary system needed very little attention after all. It wasn't worth the added expense of the extra filtration. So, they decided to re-design the system to create a more affordable coolant filter system

How Does It Work?

The Diesel Site Coolant Filter Kit is a bypass-style system that filters a small amount of the coolant on each pass. Using a spin on filter makes it easy for you to change your coolant filter at regular intervals.  These filters will remove all solid particles, new or old.  It is never too late to install a coolant filter in order to extend the longevity of your cooling system components.  While you cannot reverse the damage that is already done, you can eliminate further damage from occurring.  This kit is a must for every truck.

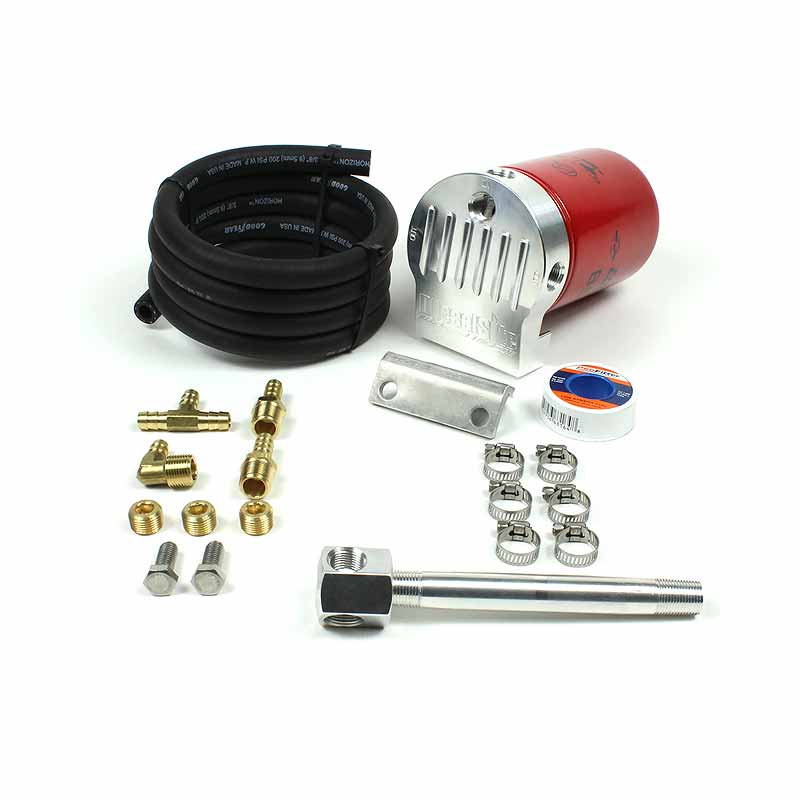

If you are one of the unlucky owners who have lost your pump between 40,000 and 80,000 miles, it isn't too late to protect your new pump.  While some damage to your pump may already be done, a coolant filter install kit will extend the longevity of your pump before it fails. It will help ensure that your next water pump will last much longer than your first one did. The Diesel Site CFIK67 Coolant Filtration System will give the protection your cooling systems need from these abrasive materials. This kit includes all fittings, hose, and stainless steel clamps needed for installation.

Features

• High-Quality Hose
• Stainless Steel Clamps
• Custom Bracket & Fittings
• CNC-Machined Aluminum Filter Block
• Removes Any Solid Particles From The Coolant
• No Cutting Factory Hoses, Drilling Holes, Or Modifying Any OEM Parts


Changing the Filter
