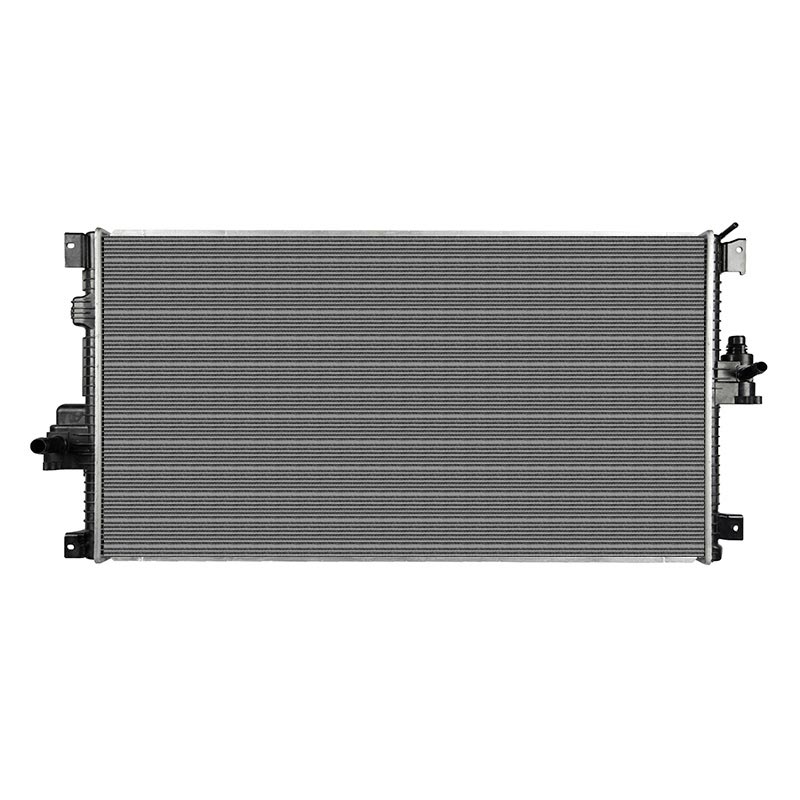

CSF 3602 OEM Style Replacement Secondary Radiator

The CSF 3602 OEM Style Replacement Secondary Radiator from is manufactured from the highest quality components to provide you with the best aftermarket OE-style replacement radiator available for your 2011-2016 Ford 6.7L Powerstroke. CSF is an ISO certified cooling system manufacturer with many OEM customers around the world. CSF is also known as an industry leader in automotive cooling for both OE and the performance aftermarket.

Each CSF Radiator is built to OE specifications for a true, "Drop-in Fit" that matches the performance of your OE radiator. CSF tests every radiator design in-house with their state-of-the-art testing facility that includes wind tunnel, burst pressure testing, vibration testing, thermal cycle, and salt spray corrosion testing. When CSF identifies a weakness in either the OEM design or performance, a stronger solution is implemented for class-leading performance and durability. Individually pressure tested and serial # certified. Comes complete with a 1-year warranty.

Secondary Radiator

OEM Replacement

Drop-In Installation

Includes 1-Year Warranty

Bottom Hose Fitting (in)1 Left

Top Hose Fitting (in)1 1/4 Right

Core Length (in)39 3/8

Core MaterialAluminum

Core Thickness (in)1 5/8

Core Width (in)20 11/16

Cross-flow/ Down-flowCross Flow

Hazardous MaterialNo

Inlet Length (in)21 3/8

Inlet Width (in)2 1/8

No. Of Rows2

Outlet Length (in)21 3/8

Outlet Width (in)2 1/8

Radiator Cap SuppliedNo

Tank MaterialPlastic

Tech NoteO.E.M. style Plastic Tanks & Aluminum Core; With Quick-Connect Outlet Pipe

Application Note
This is the replacement for the secondary radiator only.

Thermostats not included. If you intend to replace them, you will need a left and a right side thermostat.
