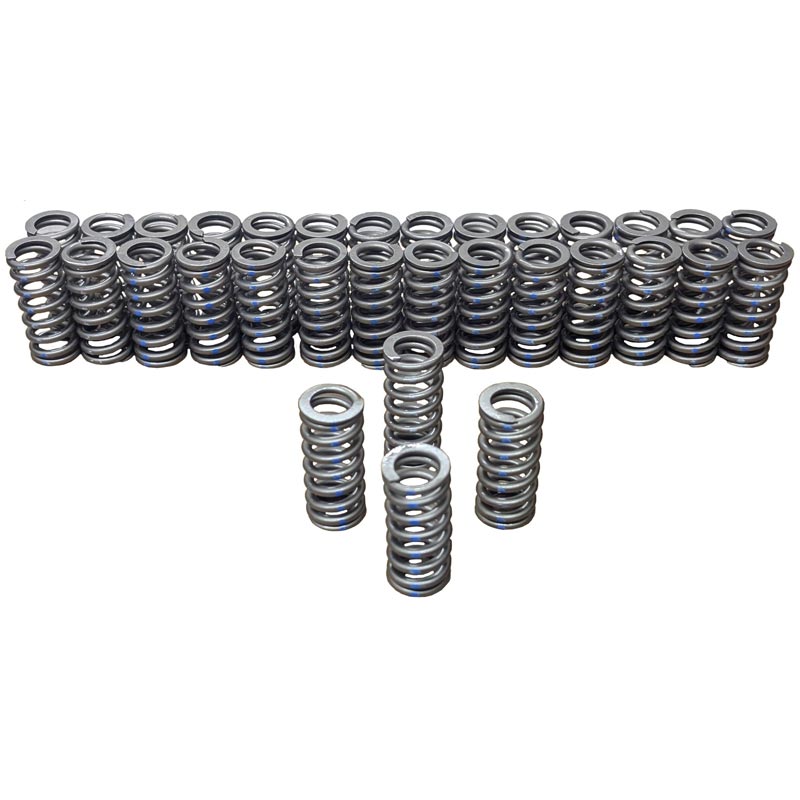

CNC Fabrication Stage 1 Ovate Valve Spring Kit 421077
CNC Fabrication Stage 1 Ovate Valve Spring Kit 421077
Regular price
$374.95 USD
Regular price
Sale price
$374.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Upgrade your high-performance Ford 6.0L/6.4L Powerstroke with the CNC Fabrication Stage 1 Ovate Valve Spring Kit 421077. Ideal for diesel engines with increased boost levels, this premium valve spring kit ensures unmatched reliability and efficiency. Each kit comes complete set of 32 polished springs for the ultimate performance upgrade.
Specifications
Install Height: 1.830"
Seat Load: 100lbs
Spring Open Height: 1.265
Spring Open Load: 280lbs
Recommended Max Valve Lift: 0.625
Spring Rate: 318LBS
Coil Bind: 1.195"
Features
- Complete Set of (32)
- Stage 1 Ovate Valve Springs
- For High-Performance Applications
- Helps Maintain Valve Control Under Increased Boost
Specifications
Install Height: 1.830"
Seat Load: 100lbs
Spring Open Height: 1.265
Spring Open Load: 280lbs
Recommended Max Valve Lift: 0.625
Spring Rate: 318LBS
Coil Bind: 1.195"
Note
Typically 6.0/6.4 valve springs do not need any shim adjustments. If you do, do not shim any more than.015". Otherwise your valve installed height is probably out of spec.
Typically 6.0/6.4 valve springs do not need any shim adjustments. If you do, do not shim any more than.015". Otherwise your valve installed height is probably out of spec.
