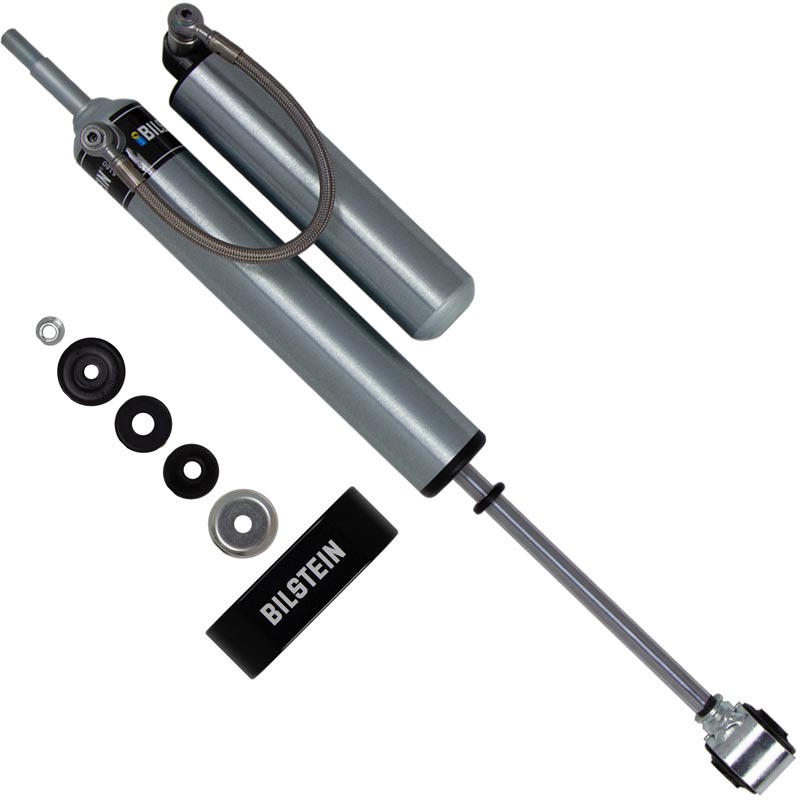

Bilstein 25-311792 B8 5160 Series Shock Absorber

The Bilstein 5160 Series Shock Absorber 25-311792 is a direct fit for your Ford F-250/350 4WD Pickup. This bolt-in replacement is designed to help you avoid the fabrication generally associated with being able to run a high-performance reservoir shock. The monotube shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. Benefits of the reservoir include increased cooling capacity and increased shock travel. Zinc-plated steel body, Triple-C-Technology coating. Sold Individually.

Specifications
Part Number: 25-187779
Old Part Number: F4-BR5-H075-H0
Series: 5160 Series
Drive Type: 4WD
Position: Front
Descriptor: Front Lifted Height: 0-2.5"
Quantity Per Vehicle: 2
Finish: Zinc Plated
Reservoir: Yes
Body Design: 46mm ID Smooth Body (Non-Coilover)

Measurements
Collapsed Length (IN): 13.58
Extended Length (IN): 22.34
Collapsed Length (MM): 345
Extended Length (MM): 567.5

Note Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. A pin to eye shock is measured from the base of the stem where the mounting hardware rests to the center of the eyelet. Shock Absorbers sold individually.
